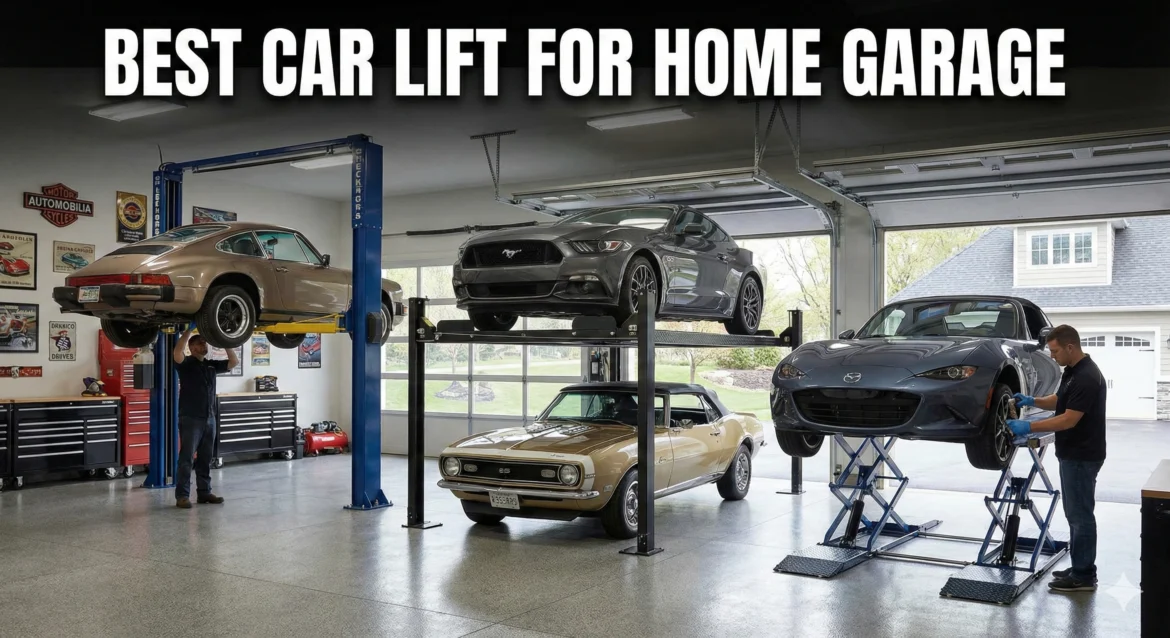

Introduction: Elevating Your Home Garage

For the automotive enthusiast, the home garage is more than a parking spot—it is a sanctuary. But nothing limits a workspace quite like gravity. Whether you are performing a transmission swap, detailing a rocker panel, or simply trying to squeeze a second vehicle into a single bay, a car lift is the ultimate force multiplier.

However, the market is flooded with options that look similar but function differently. Choosing the “best car lift for home garage” setups depends entirely on your specific mission. Are you a wrencher needing suspension access? A collector needing storage? Or a detailer needing portability?

This comprehensive guide breaks down the three primary categories of residential lifts: Under Car (Scissor/Portable), 2-Post, and 4-Post. We will analyze the mechanics, installation demands, and pricing of each to help you make the right investment.

---

At a Glance: The Three Contenders

Before diving deep, it is helpful to understand the fundamental mechanical differences.

• Under Car / Scissor Lifts: These are often portable or low-profile units that slide under the vehicle’s frame points.They lift from the center, pushing straight up.
• 2-Post Lifts: The professional standard. Two vertical columns are anchored to the floor, using swing arms to lift the vehicle by its frame. This leaves the wheels hanging free.
• 4-Post Lifts: The storage king. Four columns support two runways (ramps). You drive the vehicle onto the ramps, and the entire platform rises. The vehicle rests on its tires.

---

Deep Dive: Under Car & Scissor Lifts

What Are They?

Under car lifts are the chameleons of the garage world. They are defined by their ability to collapse flat (or near flat) on the floor, disappearing when not in use. Unlike post lifts, they lift from the bottom up, pushing against the vehicle’s frame or lifting points.

However, grouping them all together is a mistake. There are two distinct categories that function very differently: the Portable Frame-Engaging Lift and the Mid-Rise Scissor Pad.

1. Portable Frame-Engaging Lifts (The “QuickJack” Style)

This category has revolutionized home wrenching in the last decade.

• Design: These systems consist of two separate, lightweight frames—one for each side of the car. You slide them under the rocker panels, connect hydraulic hoses to a small portable power unit, and press “Up.”
• The “Open Center” Advantage: Because the two frames are not connected by a crossbar, the entire center of the vehicle remains open. This is a game-changer. Unlike traditional scissor lifts, you can drop a transmission or exhaust system with this setup.
• Movement: These lifts typically use a parallelogram action. As the lift rises, the car moves slightly forward or backward (about 12 inches). You must account for this “arc” so you don’t push your car into the garage door or work bench.
• Storage: The frames usually have wheels on one end. When you are done, you can hang them on the wall or slide them under a low-profile car.

2. Mid-Rise Scissor Lifts (The “Tire Shop” Style)

These are heavy-duty, single-unit lifts often seen in fast-lube or tire shops (e.g., BendPak MD-6XP or Twin Busch).

• Design: A large steel platform (or H-frame) sits on the floor. You drive the car over it, swing out the arms or position rubber blocks, and the lift scissoring mechanism pushes straight up.
• The “Closed Center” Issue: The lifting mechanism and hydraulic cylinders occupy the space directly under the center of the car. While great for wheel and brake work, this blocks access to the transmission, driveshaft, and mid-pipe exhaust.
• Stability: Because it is a single, heavy unit (often 1,000+ lbs), it is incredibly stable. It lifts higher than portable units (often 48+ inches) and lifts strictly vertically—no forward/backward arc.
• Installation: These are not truly “portable.” You park over them. If you want a flush floor, you have to cut a pit into your concrete and recess the lift, which is a major construction project.

3. Full-Rise Scissor Lifts

• Design: These look like mid-rise lifts but extend all the way to 6+ feet, allowing you to stand up.
• The Catch: They are expensive and require significant floor prep (usually a flush-mount pit) to be practical in a home garage. If not recessed, you need long approach ramps to get a low car over the collapsed mechanism (which can be 5-10 inches tall).

Pros

• Portability (Portable Models): This is the only option for renters, HOA neighborhoods where open garage doors are monitored, or driveways. You can use it, pack it up, and hide it in 10 minutes.
• Zero Footprint: When collapsed, you can park right over them (Mid-Rise) or hang them on the wall (Portable). You lose zero square footage in your garage.
• Safety: They are generally very stable because the center of gravity remains low and the base is wide.
• Speed: Much faster than using a floor jack and four jack stands.

Cons

• Lift Height: Most max out at 20–24 inches (Portable) or 48 inches (Mid-Rise). You won’t be standing under the car; you will be working from a rolling stool or a creeper.
• Undercarriage Obstruction (Mid-Rise only): As noted, the solid deck blocks the transmission tunnel.
• Setup Friction: With portable units, you still have to drag them out, position them, and hook up hoses every time you want to use them. It’s easier than jack stands, but harder than driving onto a 4-post lift.

Who Is This For?

• The Track Day Enthusiast: Needs to swap tires and pads quickly at the track or in the driveway.
• The Detailer: Needs the car at waist height for polishing side panels and cleaning wheel wells.
• The Small Garage Owner: Has a standard 8-foot ceiling and no room for columns.

Who Is This NOT For?

• Anyone looking to stack cars for storage (you cannot park a car underneath a scissor lift).
• Mechanics who demand “standing room” work environments.

Pricing & Specs

• Price Range: $1,500 – $2,000 (Portable); $2,500 – $4,500 (Mid-Rise/Full-Rise).
• Load Capacity: Typically 3,500 lbs to 7,000 lbs. Note: Heavy ¾-ton trucks often exceed the capacity or wheelbase length of portable units.
• Recommeded: QuickJack 8000T

---

Deep Dive: 2-Post Car Lifts

What Are They?

If you walk into any professional ASE-certified mechanic shop, this is what you see. Two columns, four arms, and total underbody freedom. The vehicle is lifted by its frame or designated jack points, leaving the suspension to hang freely. This makes the 2-post lift the gold standard for maintenance and repair.

However, not all 2-post lifts are the same. To choose the right one, you must understand the Column Orientation and the Cable Routing.

1. Column Orientation: Symmetrical vs. Asymmetrical

The way the columns are angled determines how you load the car and how easily you can get out of it.

• Symmetrical Lifts (The Heavy Lifter):
  • Design: The columns face each other directly squarely. The vehicle is loaded so that its center of gravity is perfectly centered between the posts. The front and rear lift arms are typically the same length.
  • Best For: Long-wheelbase trucks, vans, and heavy SUVs. Because the weight is perfectly centered, this is the most stable configuration for heavy loads.
  • The Downside: The columns are positioned right next to the front doors. If you have a wide vehicle, you might not be able to open the doors to get out once you drive in.
• Asymmetrical Lifts (The Daily Driver):
  • Design: The columns are rotated slightly (usually 30 degrees) toward the rear of the bay. The vehicle is pulled further back (about 30% of the car is in front of the columns, 70% is behind). The front arms are shorter, and the rear arms are longer.
  • Best For: Passenger cars, sedans, and light trucks.
  • The Upside: The rotation and rear-shifted position allow you to open the driver’s door fully without hitting the column. This is a massive quality-of-life feature for home mechanics.
• Versymmetric (The Hybrid):
  • Some premium brands (like BendPak or Rotary) offer “Versymmetric” or adjustable lifts that can be configured in either mode, or use 3-stage arms to mimic both styles. These are more expensive but offer maximum versatility.

2. Cable Routing: Clearfloor vs. Floorplate

This is the second most critical decision, dictated largely by your ceiling height.

• Clearfloor (Overhead) Models:
  • Design: The hydraulic lines and equalization cables run across the top of the lift, connecting the two columns via a crossbar.
  • Pros: The floor between the columns is completely flat. You can roll transmission jacks, oil drains, and tool carts underneath without obstruction. It looks cleaner and more professional.
  • Cons: You need a high ceiling. The crossbar typically sits at 12 feet or higher. If you have a standard 9 or 10-foot ceiling, this simply won’t fit.
• Floorplate (Baseplate) Models:
  • Design: The lines and cables run along the floor, covered by a low-profile metal plate (about 1-2 inches tall).
  • Pros: Perfect for low ceilings. The columns are usually shorter (around 9-10 feet), fitting in standard residential garages where an overhead bar would hit the rafters.
  • Cons: The floorplate is a “speed bump.” It makes moving jacks and equipment under the car annoying. It can also trap dirt and grease, requiring more cleaning.

3. Arm Design: 2-Stage vs. 3-Stage

The “arms” are the telescoping steel beams that swing out to grab the car.

• 2-Stage Arms: An outer tube and an inner extension. These are standard on cheaper lifts. They have a limited reach range.
• 3-Stage Arms: These have an extra telescoping section. They can retract shorter to pick up small cars (like a Miata or Mini Cooper) and extend longer to reach the frame points of a long-bed truck. If you work on a wide variety of vehicles, 3-stage arms are a must-have upgrade.

Pros

• Total Access: The wheels hang free. This is non-negotiable for suspension work, brake jobs, and tire rotations.
• Space Efficiency: It has a smaller footprint than a 4-post lift.
• Height: You can stand completely upright under the vehicle (ceiling permitting).

Cons

• Strict Installation Requirements: These must be bolted to the floor. If your concrete is thin or cracked, you cannot use this lift.
• Parking/Storage Issues: You typically cannot park a second car underneath for long periods. The suspension of the lifted car hangs, which is bad for bushings over months of storage. Plus, fluid drips from the top car will hit the bottom car unless you rig up a custom tarp.
• Loading Difficulty: You must get on your knees to position the arms on the lift points every single time.

Who Is This For?

• The Serious Mechanic: You do engine swaps, clutch jobs, and suspension tuning.
• The Restorer: You need access to every inch of the frame and floor pans.

Who Is This NOT For?

• The “Storage First” user who just wants to park a Corvette over a daily driver.
• Garages with poor concrete quality (less than 4 inches depth or 3000 PSI).

Pricing & Specs

• Price Range: $2,200 – $6,000.
• Load Capacity: 9,000 lbs to 18,000+ lbs. Standard home units are usually 10,000 lbs.
• Recommended: BendPak 10AP Lift

Deep Dive: 4-Post Car Lifts

What Are They?

The 4-post lift is the “lifestyle” king of the garage world. It consists of four columns supporting two runways (ramps). You drive the vehicle directly onto the tracks, and the entire platform rises. Because the vehicle rests on its tires, there is no need to kneel down and position lift arms.

While 2-post lifts are for fixing cars, 4-post lifts are primarily for storing them—though with the right accessories, they can do double duty. To pick the right one, you need to understand Length/Width configurations, Locking Systems, and the Bridge Jack ecosystem.

1. Configuration: Standard vs. High/Wide

You cannot just buy a “standard” 4-post lift and assume your truck fits.

• Standard Width: These are designed for typical sedans and sports cars. The runways are narrower, and the distance between the posts is tighter.
• Extra Wide/Tall: If you plan to park a Ford Raptor, a dually, or a wide-body supercar, or if you want to drive a wide trailer through the lift, you need a “Wide” model.
• Runway Length: This is the most common mistake buyers make. A standard lift might have 165-inch runways. A crew-cab long-bed truck can easily exceed 250 inches. If your wheelbase is too long, your tires will hang off the back. Always measure your longest vehicle’s wheelbase before buying.

2. Locking Systems: Manual vs. Pneumatic (Air)

How do you unlock the safety latches to lower the car? This is a major usability difference.

• Manual Linkage (Single Point Release): You pull a single lever on the main post, and a system of metal rods physically pulls the locks open on all four corners.
  • Pros: Simple, reliable, no external power needed.
  • Cons: The linkage rods can be finicky to adjust during installation.
• Pneumatic Locks (Air Release): The industry standard for premium lifts (like BendPak). You press a button, and a small air cylinder at each post releases the lock.
  • The Catch: You need an air compressor. It doesn’t need to be big (a small 5-gallon pancake compressor works), but it must be plumbed to the lift. If you don’t have air in your garage, this adds to the installation complexity.

3. The “Bridge Jack” Factor

A basic 4-post lift is terrible for wheel and brake work because the car is sitting on its tires. To fix this, you need Rolling Bridge Jacks.

• What are they? Hydraulic jacks that sit between the runways. You slide them under the car’s axles and lift the car off the runways.
• The Cost: They are expensive—typically $1,200 to $1,800 per jack. To do a 4-wheel tire rotation, you need two of them. This can nearly double the price of the lift.

Pros

• Parking & Storage: This is the safest way to stack cars. The vehicle rests on its suspension, which is how it was designed to sit.
• Drip Protection: You can place plastic drip trays between the runways to prevent oil from the top car ruining the paint of the bottom car.
• Mobility (Caster Kit): Surprisingly, most hobbyist 4-post lifts can be moved. A “Caster Kit” allows you to lift the lift itself onto wheels and roll it around the garage (while unloaded). This is impossible with a 2-post lift.
• Installation Tolerance: Because the weight is distributed over four columns, the concrete requirements are less strict. In fact, many 4-post lifts are “free-standing” and do not technically require bolting to the floor (though bolting is always safer for earthquake/impact stability).

Cons

• Footprint: It is massive. A 4-post lift effectively consumes a standard parking spot permanently. It feels much larger in a room than a 2-post lift does.
• Ramp Management: To get the car on, you need approach ramps. Steel ramps are heavy (40+ lbs each) and must be removed and stored every time you want to walk under the lift or park a car underneath. Pro Tip: Upgrade to Aluminum ramps if your back is bad.
• Cost: Generally more expensive than 2-post lifts due to the sheer amount of steel involved.

Who Is This For?

• The Collector: You have more cars than garage spots and need to “double stack.”
• The DIYer: You mostly do oil changes, exhaust work, and detailing.
• The Renter: If you move, you can disassemble it and take it with you easily, without leaving massive anchor holes in the concrete.

Who Is This NOT For?

• Mechanics who primarily do brake, suspension, and tire work (unless you are willing to spend big money on bridge jacks).

Pricing & Specs

• Price Range: $3,500 – $8,000 (Lift only); Add $1,500 – $3,000 for Bridge Jacks.
• Load Capacity: 7,000 lbs to 40,000+ lbs. Standard home units are 9,000 lbs.
• Recommended: APlusLift 4 Post Car Lift

---

Critical Comparison: Installation & Requirements

This is where most home garage owners make mistakes. You cannot simply buy a lift and bolt it down.

1. Concrete Requirements

• 2-Post: Strict requirement. usually a minimum of 4 inches (preferably 6 inches) of 3000 PSI cured concrete. You must not drill within 6 inches of a seam or crack. If your floor is post-tensioned cable, you cannot drill into it without X-ray scanning first.
• 4-Post: much more forgiving. While 4 inches is recommended, the stability comes from the box structure.
• Scissor: most require a flat floor, but density is less critical as the load is spread over a wide frame rail.

2. Ceiling Height

• Formula: Car 1 Height + Car 2 Height + 8 inches (lift deck thickness + safety lock clearance).
• Example: If you want to stack a Porsche 911 (52″) over a Ford Mustang (55″), you need: 52 + 55 + 8 = 115 inches (9.5 feet) minimum ceiling height.
• Overhead Hazards: Watch out for garage door openers and tracks. You may need to convert to a “High Lift” or “Jackshaft” garage door opener (mounts on the wall, not the ceiling) to clear the car.

3. Power Requirements

• 110v vs 220v:
  • Most commercial-grade 2-post and 4-post lifts run on 220v single phase (requires a dedicated 30-amp breaker).
  • Portable scissor lifts and some light-duty 4-post lifts are available in 110v, but they lift significantly slower (45-60 seconds vs 30 seconds).

---

Load Capacity: The “Truck Factor”

When choosing capacity, do not guess.

• The 9,000 lb Rule: Many standard home lifts are rated for 9,000 lbs.
• The Diesel Trap: A modern ¾-ton or 1-ton diesel truck (e.g., Ford F-250, Ram 2500) can weigh 8,000+ lbs empty. Once you add tools, fuel, and aftermarket bumpers, you are dangerously close to the limit of a 9k lift.
• Recommendation: If you own a truck or large SUV, buy a 10,000 lb or 12,000 lb lift. The price difference is often negligible compared to the safety factor.

---

Final Verdict: Which Lift Wins?

Best for the “Weekend Warrior” Mechanic

Winner: 2-Post Lift (Asymmetric)

If you have the concrete depth and the ceiling height, the 2-post lift offers the best “mechanic” experience. It turns your home into a pro shop.

• Top Pick: BendPak XPR-10AXLS (10k capacity, high rise).

Best for the “Car Collector”

Winner: 4-Post Lift

If your goal is to buy more cars without building a new garage, this is the only choice. It is safe, stable, and requires less floor prep.

• Top Pick: BendPak HD-9 or Triumph NSS-8.

Best for the “HOA / Low Ceiling” Garage

Winner: Portable Scissor Lift

If you cannot drill holes or have an 8-foot ceiling, don’t force a post lift. A high-quality portable lift gets the job done for 90% of maintenance tasks.

• Top Pick: QuickJack 7000TL (handles light trucks and SUVs).

---

Frequently Asked Questions (FAQ)

Q: Can I install a lift myself?

A: Yes, but it is heavy work. A 4-post lift requires a forklift or a team of friends to unload from the delivery truck. A 2-post lift requires renting a hammer drill and torque wrench. Many manufacturers will void the warranty if not installed by a certified partner, so check the fine print.

Q: Do I need to insure my lift?

A: You should notify your homeowner’s insurance. Some policies require a rider for garage equipment, especially if the value exceeds standard coverage limits.

Q: What is ALI Certification?

A: The Automotive Lift Institute (ALI) certifies that a lift meets safety standards (ANSI/ALI ALCTV). Always look for the Gold Label. Cheaper, uncertified “hobby” lifts may lack safety locks or use inferior steel. Never trust your life to a non-certified lift.

Last updated: January 23, 2026
Current Best Pricing Amazon: Swisstrax Tiles

1. Introduction: The Architectural Evolution of the Automotive Sanctuary

The modern residential garage is in the midst of a profound identity crisis, one that mirrors the broader shifts in residential architecture and automotive culture. For the better part of a century, the garage was a purely utilitarian appendage—a dark, uninsulated, and often grime-laden box attached to the home, intended solely for the storage of vehicles and the accumulation of household overflow. It was a space defined by its durability and lack of finish, a zone where oil stains were badges of honor and bare concrete was the undisputed standard.

However, a significant paradigm shift has occurred over the last two decades. The rise of the “garage condo” culture, the increasing valuation of collector vehicles, and the integration of the garage into the home’s thermal and aesthetic envelope have transformed this space. It is no longer merely a parking spot; it is a showroom, a workshop, a gymnasium, and a social hub. This transition has exposed the glaring inadequacy of the traditional concrete slab. Concrete, for all its structural virtues, is dusty, porous, prone to cracking, and aesthetically cold. It is a sponge for fluids and a generator of particulate matter.

As homeowners seek to elevate the garage to the standard of the rest of the residence, the flooring industry has responded with a plethora of solutions, ranging from penetrating sealers and acrylic paints to industrial epoxies and polyaspartic coatings. Yet, amidst the chemical coatings that promise a showroom shine but often deliver peeling and hot-tire pickup, a mechanical solution has emerged as the dominant choice for the serious enthusiast: the modular interlocking tile.

Among the myriad options in the modular flooring market, one product stands as the benchmark for performance, aesthetics, and engineering rigor: Swisstrax Ribtrax Pro. This report serves as an exhaustive, magazine-style deep dive into the Ribtrax ecosystem. We will move beyond the superficial bullet points of marketing brochures to explore the material science of polypropylene copolymers, the fluid dynamics of its open-profile design, the structural mechanics of its locking system, and the real-world economics of ownership. We will dissect the installation process with the granularity of a technical manual and subject the product to theoretical and practical stress tests to determine if it truly merits its status as the “cleaner than epoxy” alternative.

This is not just a product review; it is a treatise on the engineering of the modern garage floor.

---

2. The Pathology of Concrete and the Epoxy Fallacy

To understand the engineering necessity of a system like Swisstrax Ribtrax, one must first understand the deficiencies of the substrate it covers: concrete, and the limitations of its most popular alternative: epoxy.

2.1 The Concrete Problem

Concrete is an inherently flawed surface for a high-end garage.

• Porosity and Staining: Concrete acts as a rigid sponge. The capillary action of the cured cement paste wicks fluids deep into the matrix. A spill of motor oil, transmission fluid, or even brake dust-laden water penetrates the surface, creating permanent stains that are impossible to remove without aggressive chemical emulsifiers or mechanical grinding.
• Dust Generation: Unsealed concrete constantly “dusts.” This phenomenon, known as efflorescence or simple surface abrasion, creates a fine layer of silicate dust that settles on vehicles, tools, and storage boxes. For a detailing enthusiast trying to achieve a perfect paint correction, this airborne particulate is a nightmare.
• Thermal and Acoustic Properties: Concrete is a thermal bridge, conducting ground temperatures directly into the space. In winter, it is a heat sink that makes the floor painfully cold to stand on. Acoustically, it is highly reflective, causing noise from tools and voices to reverberate harshly.

2.2 The Limitations of Coatings

The traditional solution to these woes has been liquid coatings—epoxy, polyurethane, and polyurea. While a professionally installed, industrial-grade epoxy floor is a thing of beauty, the residential market is plagued by failure.

• Hot Tire Pickup: This is the most catastrophic failure mode for coatings. When a vehicle is driven, the friction heats the tires. When parked, the tires cool and contract. On a molecular level, the rubber can bond to the coating. When the car is moved, the tire literally rips the coating off the concrete.¹ This is exacerbated by poor surface preparation or lower-grade DIY kits.
• Moisture Vapor Transmission: Concrete slabs are rarely perfectly sealed from the ground below. Hydrostatic pressure from soil moisture migrates up through the slab. If the floor is capped with an impermeable layer of epoxy, this moisture pressure builds up at the bond line, leading to blistering, bubbling, and eventual delamination.
• Preparation Sensitivity: A successful coating requires 90% preparation and 10% application. It demands diamond grinding, acid etching, and absolute cleanliness. Any deviation results in failure.

Swisstrax Ribtrax fundamentally sidesteps these pathologies not by trying to bond to the concrete, but by floating above it. It is a “floating floor” system that is mechanically decoupled from the substrate. It does not care if the concrete is cracked, stained, or emitting moisture. It provides a new, consistent, and engineered surface that breathes, drains, and supports.

---

3. Material Science and Structural Engineering

At the heart of the Swisstrax value proposition is the tile itself. It is not merely a piece of molded plastic; it is a complex structural component designed to handle extreme loads while maintaining flexibility and chemical inertness.

3.1 The Polymer: Virgin Polypropylene Copolymer

The material composition of Ribtrax Pro is the single most critical factor in its performance. The tiles are injection molded from 100% UV-stabilized virgin polypropylene copolymer.²

3.1.1 Virgin vs. Recycled Resin

In the plastics industry, “virgin” denotes resin that has not been previously processed or recycled. While using recycled material is environmentally laudable for packaging or non-structural items, it introduces significant variables in a flooring application. Recycled plastics often contain impurities and have shorter, degraded polymer chains due to the thermal stress of previous melting cycles. This results in material that is more brittle and less consistent in color. Swisstrax’s use of virgin resin ensures that the molecular structure is uniform, maximizing tensile strength and impact resistance. This is why a Swisstrax tile can bend without breaking, whereas a cheaper competitor made of recycled content might snap under the same deflection.

3.1.2 Copolymer vs. Homopolymer

Polypropylene (PP) generally comes in two forms: homopolymer and copolymer.

• Homopolymer: High stiffness but brittle, especially at freezing temperatures.
• Copolymer: Created by polymerizing propylene with ethylene. The ethylene molecules disrupt the crystallinity of the polypropylene, acting as internal impact modifiers. The decision to use a copolymer is why Ribtrax has a temperature tolerance range of -22°F (-30°C) to 248°F (120°C).² A garage in Minnesota or Canada can experience temperature swings from -20°F in winter to 100°F in summer. A homopolymer tile might shatter if a wrench is dropped on it at -20°F. The Ribtrax copolymer retains enough ductility to absorb the impact energy without catastrophic failure.

3.2 The Injection Molding Process

Swisstrax utilizes a proprietary four-point injection molding process.⁵ In typical injection molding, molten plastic is injected into the mold from a single gate. For a large, complex lattice structure like a Ribtrax tile, a single gate can lead to “knit lines” where the flow fronts of the plastic meet and cool, creating weak points. By using a four-point injection system, Swisstrax ensures that the mold fills evenly and rapidly, maintaining consistent material density and minimizing internal stresses. This results in a tile that is perfectly flat and dimensionally stable, crucial for maintaining the integrity of a large interlocked floor.

3.3 Structural Metrics: Strength Analysis

The technical data sheets present two key figures that are often misunderstood: Compressive Strength and Rollover Weight.

• Compressive Strength: 3,120 PSI.²
  • This figure refers to the pressure required to crush the solid material of the tile. While 3,120 PSI is lower than high-strength concrete (often 4,000+ PSI), it is more than sufficient for distributed loads. The channel structure underneath the tile acts as a series of miniature columns, transferring the load to the concrete.
• Rollover Weight: Up to 70,000 lbs.⁶
  • This is the functional metric for a garage. It means the floor can support the rolling load of a semi-truck, a fire engine, or a loaded forklift without the ribs collapsing. The dynamic nature of rolling loads puts shear stress on the ribs, and the tile’s geometry is optimized to resist this lateral deformation.

Table 1: Technical Specifications Matrix

Metric	Specification	Engineering Implication
Material	UV Stabilized Virgin Polypropylene Copolymer	High impact resistance, color consistency, cold weather ductility.
Tile Size	15.75″ x 15.75″ (40cm x 40cm)	Faster installation, fewer seams, “European” aesthetic.
Thickness	0.75″ (19mm)	Substantial drainage clearance, high load distribution.
Weight	1.47 lbs (0.67 kg) per tile	heavy enough to stay in place, light enough for easy handling.
Perforation Width	0.13″ (3.2mm)	Balances drainage with preventing small tools from falling through.
Friction Coefficient	Non-slip when wet	Safety in wash bays and snowy climates.
Fire Rating	HB (Horizontal Burn)	Slow burn rate; will not flash-ignite from sparks.
Chemical Resistance	Excellent (Hydrocarbons, Acids, Alkalis)	Impervious to common automotive fluids.

---

4. The Philosophy of the Open Profile: Hygiene and Drainage

The most visually distinct feature of the Ribtrax line is its “open profile”—a grid of ribs with voids in between. This design is not merely aesthetic; it is a functional response to the problem of dirt and moisture.

4.1 The “Visual Cleanliness” Paradox

In a garage with a solid floor (epoxy or solid tile), dirt has nowhere to go. Every grain of sand, every dead leaf, and every droplet of water sits on the surface, visible and easily tracked into the house or vehicle. To keep a solid floor looking clean, one must sweep constantly.

Ribtrax operates on a different principle: Vertical Displacement. The 0.13-inch gaps between the ribs allow debris to fall through the surface and settle on the concrete 0.75 inches below.²

• The Filter Effect: The tile acts as a grate. The surface you walk on remains relatively clean because the dirt is physically separated from your shoes. This is analogous to the “grit guard” used in car washing buckets.⁸ The dirt is trapped below, preventing it from being ground into the surface or tracked elsewhere.
• Visual Persistence: Because the eye focuses on the top surface of the ribs and the channels below are in shadow, the floor looks clean even when there is a significant amount of debris underneath. For commercial detailing shops or showrooms, this ensures a professional appearance 100% of the time, regardless of the weather outside.

4.2 Fluid Dynamics and Drainage

The underside of the Ribtrax tile features a complex network of channels.⁸ These channels are designed to allow water to flow freely under the tile.

• Wet Environments: In snowy climates, a car pulls in laden with snow and slush. On a flat floor, this melts into a puddle that surrounds the car, creating a slip hazard and increasing humidity. With Ribtrax, the meltwater drops through the tile. The car is parked on a dry surface, and the water flows underneath toward the garage door or floor drain.
• Evaporation: The airflow through the open grid promotes evaporation of the moisture trapped underneath, preventing the “swampy” smell often associated with rubber mats that trap water against concrete.

---

5. Comparative Market Analysis

To fully evaluate Swisstrax, it must be benchmarked against its primary competition. The market is bifurcated into coatings (Epoxy) and other modular tiles (primarily RaceDeck).

5.1 Swisstrax vs. The Epoxy Standard

We have established the pathology of coating failures, but what about the cost and lifestyle comparison?

Table 2: Swisstrax Ribtrax vs. Professional Epoxy

Feature	Swisstrax Ribtrax Pro	Professional Epoxy Coating
Installation Time	4-6 Hours (DIY possible)	3-5 Days (Professional required)
Cure Time	Immediate use	24-72 hours
Surface Prep	Minimal (Sweep/Vacuum)	Extensive (Grinding/Shot Blasting)
Moisture Tolerance	100% (Breathable)	Low (Prone to hydrostatic failure)
Repairability	Instant (Swap single tile)	Difficult (Sand and recoat section)
Portability	100% (Take it when you move)	0% (Sunk cost)
Initial Cost	~$4.00 – $5.00 / sq ft	$6.00 – $10.00 / sq ft (Pro install)
Warranty	Limited Lifetime	Varies (1-10 years typically)

The “portability” factor is a massive financial advantage for Swisstrax.⁹ An investment in epoxy is an improvement to the real estate that may or may not be recouped at sale. An investment in Swisstrax is an asset acquisition; the floor can be uninstalled and moved to a new home, amortizing the cost over decades of ownership.

5.2 Swisstrax vs. RaceDeck: The Battle of the Tiles

RaceDeck is the other giant in the US modular flooring market. Their “Free-Flow” tile is the direct competitor to Ribtrax. While they share a similar concept, the engineering execution differs significantly.

5.2.1 The Locking Mechanism

• RaceDeck (Snap-Lock): Uses a male/female tab system that snaps vertically. While secure, the friction fit can be extremely tight. Disassembling the floor often requires starting from an edge and “unzipping” large sections.
• Swisstrax (Loop-and-Peg): Swisstrax utilizes a patented loop-and-peg system. This design is not just about holding tiles together; it is designed for serviceability. A single Swisstrax tile can be removed from the center of the floor without disturbing the surrounding tiles.¹¹ Using a simple hook tool or flathead screwdriver, the user lifts the corner, disengages the pegs, and pulls the tile out. This is a critical advantage for cleaning up specific spills or accessing a floor drain.

5.2.2 Size and Seams

• Swisstrax: 15.75″ (40cm).
• RaceDeck: 12.00″. The larger Swisstrax tile results in ~43% fewer seams per square foot. Furthermore, the design of the Swisstrax rib pattern is engineered to camouflage the seam. When installed, a Swisstrax floor appears as a continuous, seamless field. RaceDeck tiles often have a visible “grid” appearance where the tiles meet, breaking the visual immersion.¹¹

5.2.3 Weight and Feel

Swisstrax tiles are generally heavier (23.5 oz) and thicker (0.75″) compared to standard competitors. This mass, combined with the rubber-like quality of the copolymer, gives the floor a more substantial, “dead” sound when walked on. Lighter, cheaper tiles often have a hollow, “plastic-y” click-clack sound that detracts from the premium feel.

---

6. Installation: A Technical Narrative

Installation is often marketed as “easy DIY,” but for the perfectionist, it is a precision operation. The following is a detailed walkthrough of the installation process, incorporating best practices for a flawless finish.

6.1 Pre-Installation Preparation

While the floor covers imperfections, the substrate must be stable.

1. Debris Removal: The floor must be swept and vacuumed. Any sharp stones left under the tile could point-load the plastic from underneath.
2. Leveling: While the tiles bridge small cracks, heaving deviations of more than 0.25 inches should be ground down or filled to prevent the tiles from rocking or creating a trip hazard.
3. Acclimatization: It is best practice to let the tiles sit in the garage for 24 hours to acclimatize to the ambient temperature and humidity, ensuring consistent expansion during install.

6.2 Layout Strategy: The “Front-to-Back” Method

Symmetry is the key to a professional look.

1. The Critical Edge: The most visible part of the floor is the row of tiles at the garage door. This row should consist of full, uncut tiles for maximum visual integrity.
2. Centerline: Measure the width of the garage door opening to find the exact center. Mark this on the floor.
3. The First Tile: Installation typically starts at the front left or front right corner, but for a centered design, one might lay the first row dry to ensure the cuts at the side walls are equal.
4. Directionality: Swisstrax tiles have a specific orientation (Loop sides and Peg sides). It is crucial to maintain this orientation. Typically, you install with the “Loops” facing the direction you are moving, pressing the “Pegs” of the new tile down into them.¹³

6.3 The Cutting Phase

The field installation is rapid—the “snap” of the tiles is satisfying and fast. The complexity lies in the perimeter.

• Tools: A circular saw or jigsaw is standard. However, for the cleanest cuts, a table saw with a fine-tooth blade (60-80 tooth laminate blade) is recommended. The high tooth count prevents the plastic from chipping or shattering.
• Thermal Expansion Gap: This is the most critical technical detail. Polypropylene has a high coefficient of thermal expansion. In a non-climate-controlled garage, the floor can grow and shrink significantly. You MUSTleave a gap of 0.25″ to 0.50″ between the tiles and any fixed vertical surface (walls, pillars, workbench legs).¹³
  • Consequence of Failure: If you fit the tiles tight to the wall in winter (contracted state), the floor will expand in summer, hit the wall, and buckle upwards in the center of the garage (tenting).
• Obstacle Integration: For garage door tracks or pipe bollards, a jigsaw is used to scribe the shape. A cardboard template is often useful to get the curve right before cutting the expensive tile.

6.4 The Transition Edges

The installation is capped off with the “looped edges”.⁷ These are 15.75″ ramp pieces that snap onto the front row. They provide a smooth rolling transition for vehicles and protect the raw edge of the tile from impact damage. Swisstrax offers these in matching colors, allowing for a seamless visual flow or a contrasting safety yellow.

---

7. The Aesthetic Ecosystem: Design and Customization

The modularity of Swisstrax allows for a level of customization that epoxy cannot match without immense labor.

7.1 Visual Texture and Light

The “3D” nature of the open profile creates a matte, textured appearance. This is optically superior for a working garage compared to high-gloss epoxy. Glossy floors act as mirrors, highlighting every scratch, swirl mark, and spec of dust. The ribbed texture of Swisstrax absorbs light and breaks up reflections. This “visual noise” camouflage is why the floor can look clean even when it isn’t.

7.2 Color Theory and Patterns

With ~18 standard colors ⁹, the design possibilities are infinite, but three archetypes dominate:

1. The Checkerboard: The classic “diner” or “racing” look. High contrast (Black/White or Red/Black). It is energetic but can make a small space feel cluttered.
2. The “Area Rug”: A solid field color (e.g., Slate Grey) with a contrasting border (e.g., Pearl Silver). This defines the parking space and creates a sophisticated, architectural look.
3. Zoning: Using color to define function. Red tiles around the workbench to denote a “danger/work zone,” or grey tiles for the walkway.

7.3 The Swisstrax Ecosystem Compatibility

A key advantage is the ability to mix different tile types within the same 15.75″ Pro ecosystem.¹²

• Ribtrax Pro: The standard open tile, used for the main floor and parking pads.
• Ribtrax Smooth Pro: An open profile tile but with a flat top surface (no rounded ribs). This is easier on the knees and smoother for rolling casters, often used in workshop areas.¹⁵
• Vinyltrax Pro: A solid tile with a vinyl inlay (wood grain, carbon fiber, polished concrete look). This can be used to create a “lounge” area or a dance floor within the garage.
• Note: The “12-Series” tiles (Diamondtrax 12) are not compatible with the Pro line. Mixing them requires complex custom cutting and is generally not recommended.

---

8. Operational Reality: Living with the Floor

Beyond the specs and the look, how does the floor perform in daily life?

8.1 Maintenance and Cleaning Protocols

The “dirt trap” concern is valid but manageable.

• Routine Cleaning: A shop vac is the primary tool. The suction pulls dust up through the vents. A leaf blower can also be used to blow light debris out the garage door.
• Washing: For muddy messes, the floor can be mopped. The mop glides over the ribs, cleaning the top surface.
• Deep Cleaning: Once or twice a year, a pressure washer can be used to blast the concrete underneath. The channels allow the water and sediment to flow out.
• The “Reset”: Because of the easy removal capability, every 2-3 years, an owner can unzip large sections, pull them onto the driveway, and thoroughly scrub the concrete substrate. This resets the garage to clinical cleanliness.⁸

8.2 Ergonomics and Acoustics

• Anti-Fatigue: While not a soft foam mat, the sprung nature of the tile (due to the arched ribs and plastic flex) provides noticeable relief compared to concrete. Standing for 4 hours at a workbench is significantly less fatiguing on the lower back and joints.
• Thermal Comfort: The air gap acts as an insulator. The floor assumes the ambient air temperature rather than the ground temperature. In winter, this makes a massive difference for mechanics lying under a car.
• Noise: The floor dampens the high-frequency “ring” of a dropped wrench. Walking on it creates a distinct “clack” sound, which some find industrial and others find reassuringly solid. Using a rubber underlayment (like recycled rubber rolls) can mute this sound and provide a more solid “thud”.¹⁸

8.3 Rolling Resistance

This is the primary functional drawback. The gaps in the ribs can catch the small wheels of creeper seats or lightweight trolley jacks.

• Mitigation: Upgrading to larger diameter wheels (3″+) on creepers solves this. For heavy toolboxes, the initial force to start them rolling is higher than on smooth concrete, but they will roll.

8.4 The Jack Stand Protocol (Critical Safety)

Standard jack stands have sharp feet that concentrate thousands of pounds of force into tiny surface areas. On Ribtrax, these feet can sink between the ribs or crush the plastic structure, leading to instability or permanent damage.

• The Rule: ALWAYS use a load distribution plate. A simple 12″x12″ square of 0.5″ plywood or a metal plate placed under the jack stand distributes the load across the tile’s structure, making it perfectly safe.²⁰ Floor jacks with wide rollers generally work fine without protection, but caution is advised.

---

9. Durability and Testing Logic

To validate the “Limited Lifetime Warranty” claims, we analyze the testing logic applied to these tiles.

9.1 The Rolling Load Test

The “70,000 lbs rollover weight” is tested using a dynamic load cell. A weighted wheel is rolled back and forth across the tile. The failure point is defined as the weight at which the ribs show permanent plastic deformation (flattening). 70,000 lbs is effectively infinite for a residential setting—a Ford F-350 weighs ~8,000 lbs. You could park a fire truck on these tiles without structural failure.⁶

9.2 Chemical Resistance Testing

Polypropylene is legendary for its chemical resistance.

• Test: A pool of used motor oil, brake fluid (DOT 3), and gasoline is left on the tile for 24 hours.
• Result: The fluids do not bond to the plastic. They can be wiped off with a rag. There is no staining, no softening, and no discoloration. This is in stark contrast to epoxy, which can stain if oil is left too long, or asphalt tiles which dissolve in gasoline.⁴

9.3 Impact Testing

The copolymer’s flexibility is tested by dropping heavy objects (hammers, brake rotors) from height. The tile absorbs the energy through elastic deformation. In extreme cold (-20°F), the material becomes stiffer, but the virgin resin prevents it from becoming “glass-like” and shattering.²

---

10. Financial Analysis: The Total Cost of Ownership

Swisstrax is a premium product with a premium price tag. Is it worth it?

10.1 The Price Breakdown

• Ribtrax Pro MSRP: Approximately $4.99 per square foot.²
• Edges: ~$3.00 – $5.00 per linear foot.
• Example Calculation (20′ x 20′ Garage – 400 sq ft):
  • Tiles: 400 sq ft * $4.99 = $1,996.
  • Edges: 20 ft * $4.00 = $80.
  • Total Material Cost: ~$2,076.

10.2 Discounts and The Referral “Hack”

Smart buyers never pay full MSRP.

• Direct Sales: Swisstrax.com often runs sales (15-25% off) during major holidays (Memorial Day, Black Friday).
• Affiliate Codes: Influencers and partners (e.g., Obsessed Garage, automotive YouTubers) often have codes for free shipping or percentage discounts (e.g., “RADGARAGE” for $0.25/sq ft off in Canada).²³
• The Referral Program: This is a hidden gem. Swisstrax offers a $100 Visa Gift Card for referrals. If you refer a friend who buys at least 200 sq ft (half a garage), you get $100. This is a powerful incentive for car clubs or groups of friends building garages together.⁹

10.3 The ROI of Portability

The most significant financial argument for Swisstrax over epoxy is equity retention.

• Epoxy: Sunk cost. You cannot take it with you. It adds marginal value to the home sale.
• Swisstrax: It is personal property. When you move, you spend 2 hours unzipping the floor, pack it in boxes, and take it to your new house. If the new garage is a different shape, you simply buy a few more tiles or trim the existing ones. Over a lifetime of moving 3-4 times, the cost per year of Swisstrax drops drastically compared to re-epoxying every new garage.¹⁰

---

11. FAQ: The Enthusiast’s Doubts

Q: Will the tiles stain from tire dressing?

A: Silicone-based tire dressings can make the tiles slippery, but they generally do not stain the pigmented polypropylene. However, care should be taken to wipe up excess dressing to prevent slip hazards.

Q: Can I use a creeping stool? A: Yes, but it will be bumpy. Upgrading to “rollerblade” style soft rubber casters (3-inch diameter) is highly recommended for a smoother ride over the ribs.⁸

Q: What happens if I turn my wheels while the car is stationary?

A: This creates significant torque on the floor. On cheap tiles, this can snap the locks. On Swisstrax, the weight of the car effectively pins the tile to the concrete, and the locks are strong enough to resist separation. However, in extreme cases (heavy truck, sticky tires, hot day), some minor shifting can occur, which is easily kicked back into place.

Q: Is it fireproof? A: No. It is rated HB (Horizontal Burn). It will melt if exposed to a direct torch or welding slag. Welding blankets are mandatory if you are doing hot work over the floor.²

---

12. Conclusion: The Verdict

Swisstrax Ribtrax Pro is not merely a floor covering; it is an engineered infrastructure upgrade for the garage. It solves the fundamental problems of concrete—aesthetics, moisture, and dust—through a clever application of material science and geometry.

While the “open profile” design requires a shift in mindset regarding dirt management (accepting that the dirt is hidden below rather than swept away daily), the benefits in visual cleanliness and drainage are undeniable. For the detailing enthusiast, the ability to wash a car indoors without standing in a puddle is transformative. For the general homeowner, the instant elevation of the garage’s aesthetic from “storage unit” to “showroom” adds tangible quality-of-life value.

The comparison with epoxy is ultimately a choice between a permanent, high-maintenance chemical finish and a flexible, durable mechanical system. For those who value longevity, repairability, and the ability to control their environment, Swisstrax is the superior choice. It is an investment that survives the harsh reality of automotive passion—heavy jacks, spilled oil, and dropped tools—and asks only for a quick rinse in return.

Final Recommendation:

For the serious garage enthusiast, the Swisstrax Ribtrax Pro is a Buy. The combination of the virgin copolymer durability, the serviceable loop-and-peg system, and the stunning visual impact justifies the premium price. It is the tuxedo for your garage: durable, stylish, and always ready for the showroom.

---
